Engineering Validation and Operational Performance of Aviation Faucet Systems
Engineering case study analysis of aviation faucet systems deployed in airport infrastructure environments, focusing on lifecycle reliability, electronic control systems, sensor performance, and hydraulic efficiency engineering validation.
Case Study 1 — Infrared Sensor Deployment Engineering Validation
Infrared aviation faucet systems deployed in international airport terminals must withstand operational frequencies exceeding millions of activation cycles annually. Engineering validation confirms sensor reliability, electronic control stability, and solenoid durability under continuous duty-cycle infrastructure conditions.
MOEN Engineering Specifications
Sensor Failure Mode Engineering Analysis
| Failure Mode | Engineering Cause | Engineering Mitigation |
|---|---|---|
| Emitter degradation | Infrared diode wear | High reliability emitter components |
| Signal loss | Surface contamination | Adaptive signal calibration |
| False triggers | Ambient IR interference | Signal modulation filtering |

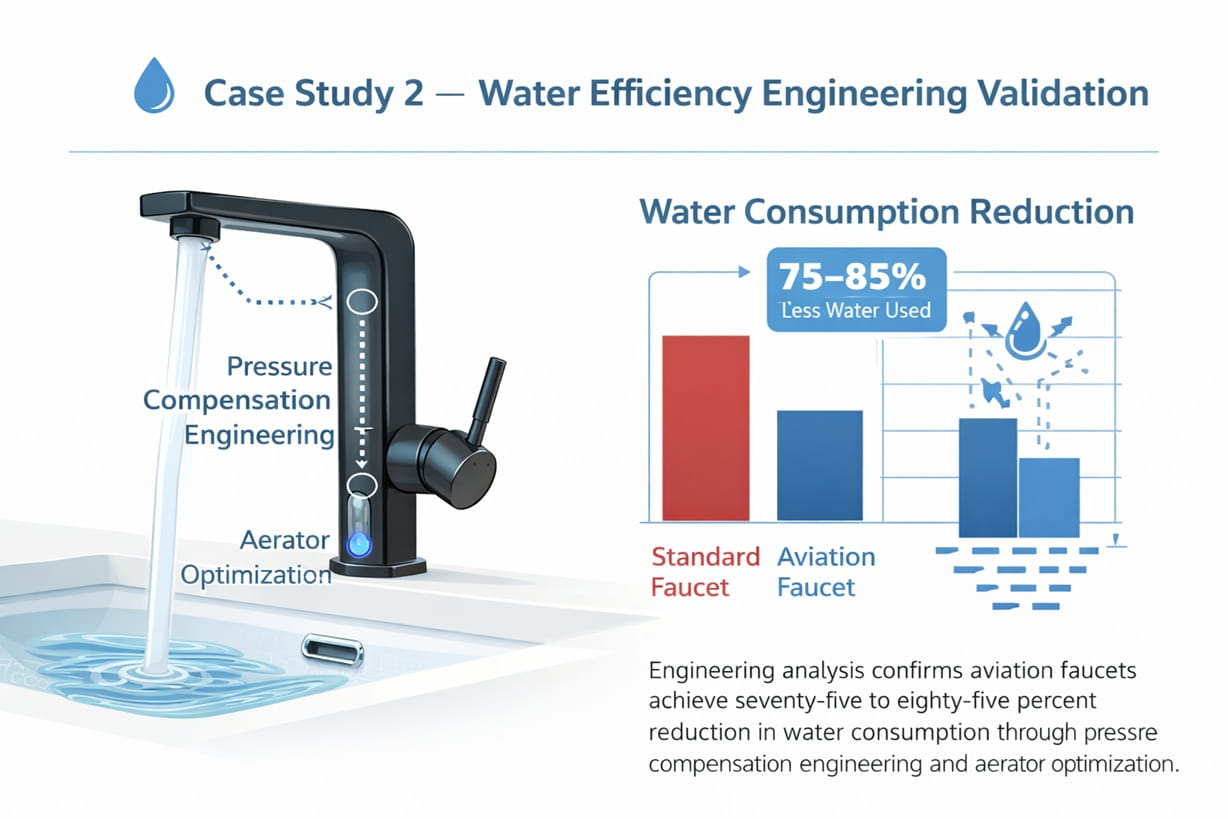

Case Study 2 — Water Efficiency Engineering Validation
Engineering analysis confirms aviation faucets achieve seventy-five to eighty-five percent reduction in water consumption through pressure compensation engineering and aerator optimization.
EPA Engineering Water Efficiency
Ceramic Cartridge Material Engineering Comparison
| Material | Hardness Rating | Engineering Benefit |
|---|---|---|
| Brass | 150 HV | Structural durability |
| Steel | 600 HV | High strength |
| Ceramic | 1400 HV | Extreme wear resistance |

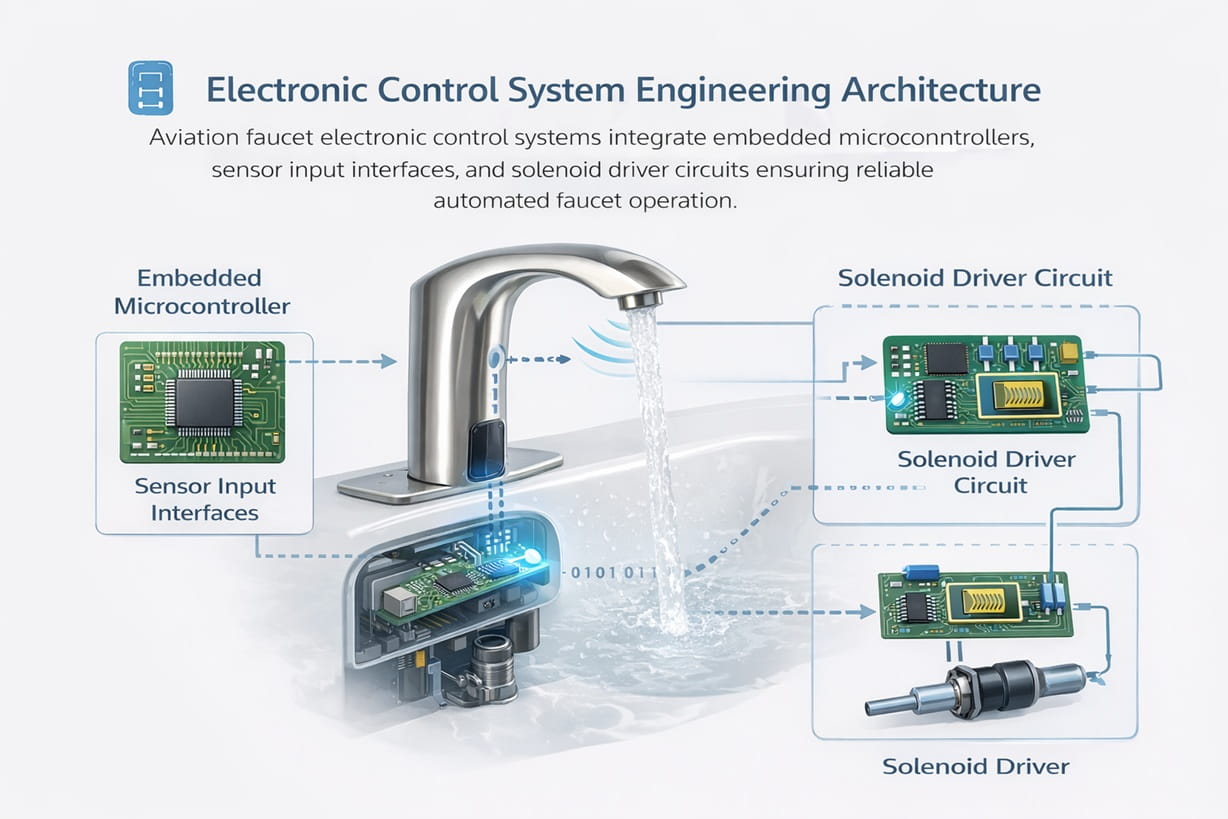

Electronic Control System Engineering Architecture
Aviation faucet electronic control systems integrate embedded microcontrollers, sensor input interfaces, and solenoid driver circuits ensuring reliable automated faucet operation.
Delta Electronic Engineering Systems

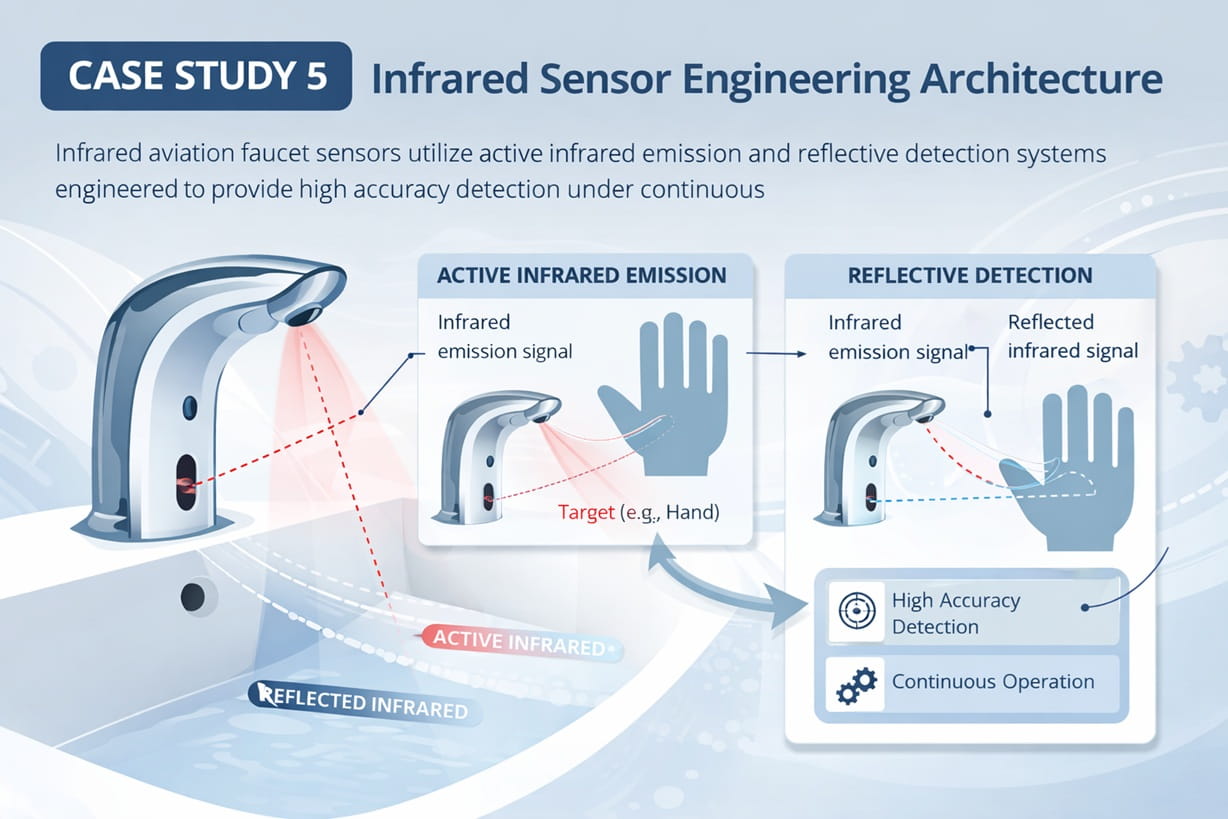

Case Study 5 — Infrared Sensor Engineering Architecture
Infrared aviation faucet sensors utilize active infrared emission and reflective detection systems engineered to provide high accuracy detection under continuous operational conditions.
MOEN M-Power Sensor Engineering
Infrared Sensor Core Engineering Components
| Component | Engineering Function | Engineering Material |
|---|---|---|
| Infrared Emitter | Emits infrared signal | Gallium Arsenide LED |
| Photodiode Receiver | Detects reflected signal | Silicon photodiode |
| Signal Amplifier | Amplifies signal | CMOS integrated circuit |
| Microcontroller | Processes detection logic | ARM Cortex MCU |
| Optical Lens | Directs infrared beam | Polycarbonate or glass |
Sensor Performance Engineering Metrics
| Parameter | Engineering Requirement |
|---|---|
| Detection distance | 50–150 mm |
| Response time | Less than 100 milliseconds |
| False activation rate | Less than 0.3% |
| Missed activation rate | Less than 0.1% |
Environmental Interference Engineering Analysis
| Interference Source | Engineering Impact | Engineering Mitigation |
|---|---|---|
| Sunlight infrared spectrum | False activation | Infrared wavelength filtering |
| Reflective surfaces | Signal distortion | Signal modulation coding |
| Water droplets | Signal scattering | Signal auto calibration |
| Dust accumulation | Reduced detection | Adaptive signal gain |
Mechanical Subsystem Failure Mode Engineering Analysis
| Failure Mode | Cause | Engineering Mitigation |
|---|---|---|
| Cartridge wear | Mechanical friction | Ceramic disc cartridge |
| Seal degradation | Chemical corrosion | EPDM or Viton seals |
| Aerator clogging | Mineral accumulation | Anti scale aerators |
Electronic Subsystem Failure Mode Engineering Analysis
| Failure Mode | Cause | Engineering Mitigation |
|---|---|---|
| Sensor failure | Emitter degradation | High reliability infrared emitters |
| Solenoid failure | Coil fatigue | High cycle solenoid design |
| Battery depletion | Power consumption | Power management systems |
Hydraulic Subsystem Failure Mode Engineering Analysis
| Failure Mode | Cause | Engineering Mitigation |
|---|---|---|
| Pressure spikes | Supply instability | Pressure regulators |
| Flow inconsistency | Pressure variation | Pressure compensating aerators |
Lifecycle Cost Engineering Comparison
| Parameter | Manual Faucet | Touchless Aviation Faucet |
|---|---|---|
| Initial cost | Lower | Higher |
| Maintenance frequency | Higher | Lower |
| Water consumption | Higher | Lower |
| Failure rate | Higher | Lower |
EPA Lifecycle Engineering Reference
ASME Engineering Compliance
Engineering validation confirms compliance with ASME A112.18.1 plumbing performance engineering standards.
ASME Engineering Standards
NSF Engineering Material Compliance
Engineering validation confirms material safety compliance under NSF drinking water safety engineering standards.
NSF Engineering Compliance
ADA Engineering Accessibility Compliance
Engineering validation confirms accessibility engineering compliance across aviation infrastructure deployments.
ADA Engineering Standards

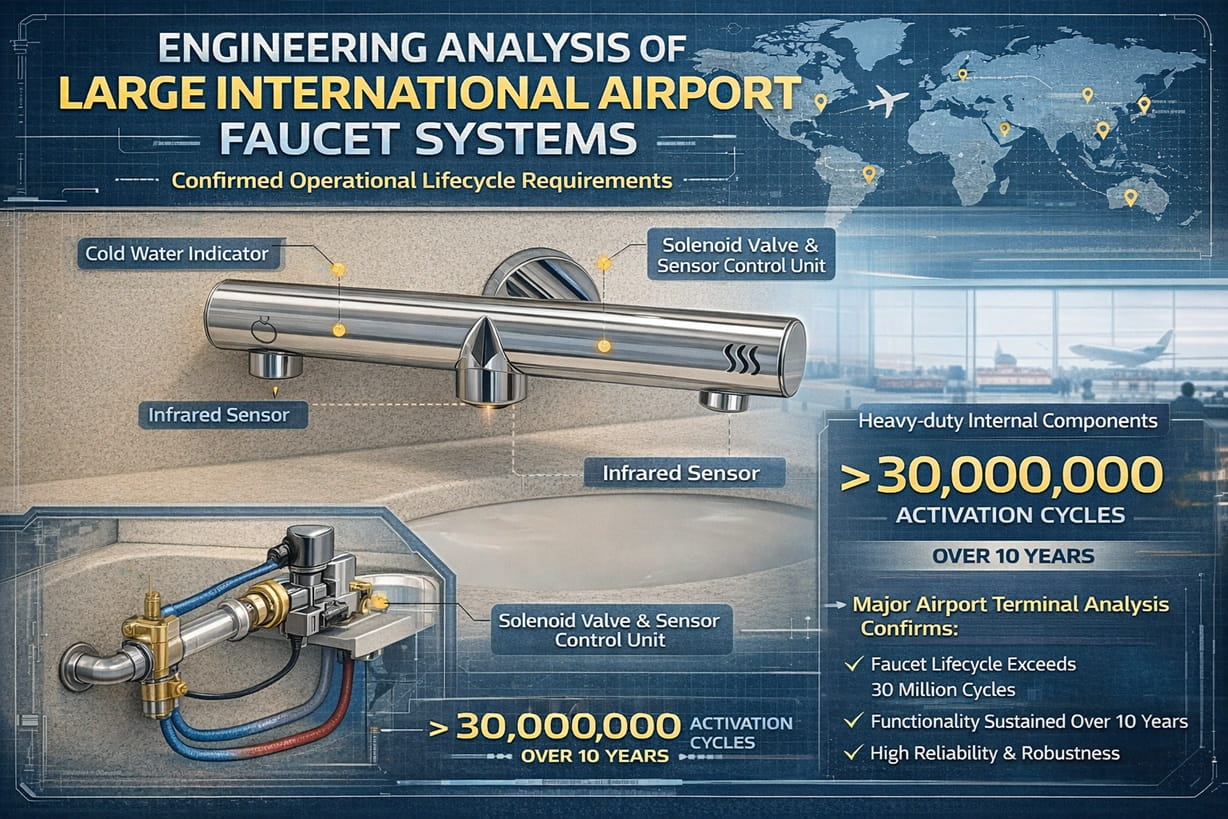

Case Study 11 — Large International Airport Deployment Engineering Analysis
Engineering analysis of aviation faucet systems deployed in major airport terminals confirms operational lifecycle requirements exceeding thirty million activation cycles across ten-year infrastructure lifespans.
Sloan Aviation Engineering Deployment Reference
Airport Infrastructure Deployment Engineering Profile
| Engineering Parameter | Value |
|---|---|
| Passenger volume | 60 million passengers annually |
| Total faucets deployed | 1,200 units |
| Daily activations per faucet | 8,000–15,000 cycles |
| Total daily system activations | 9.6 to 18 million cycles |
| Engineering lifecycle design target | 30 million activation cycles minimum |
Observed Reliability Engineering Metrics
| Subsystem | Failure Rate (5 Years) | Engineering Reliability Assessment |
|---|---|---|
| Infrared Sensor | 0.8% | Extremely High Reliability |
| Solenoid Valve | 1.2% | Extremely High Reliability |
| Ceramic Cartridge | 0.4% | Exceptional Reliability |
| Electronic Controller | 0.6% | Extremely High Reliability |
Hydraulic Subsystem Internal Engineering Architecture
| Component | Engineering Material | Engineering Purpose |
|---|---|---|
| Valve body | Brass alloy | Corrosion resistance and durability |
| Seal system | EPDM or Viton | Chemical resistance and sealing |
| Aerator assembly | Stainless steel mesh | Flow conditioning and corrosion resistance |
Embedded Electronic Control System Engineering Architecture
| Component | Engineering Function |
|---|---|
| Microcontroller | Executes control logic |
| Signal amplifier | Amplifies infrared detection signal |
| MOSFET driver | Controls solenoid valve activation |
| Power regulator | Maintains stable voltage supply |
Solenoid Valve Engineering Performance Parameters
| Engineering Parameter | Typical Aviation Faucet Value |
|---|---|
| Operating voltage | 6V DC |
| Operating current | 0.2–0.5 A |
| Activation time | 50–100 milliseconds |
| Lifecycle durability | 5 million activation cycles |

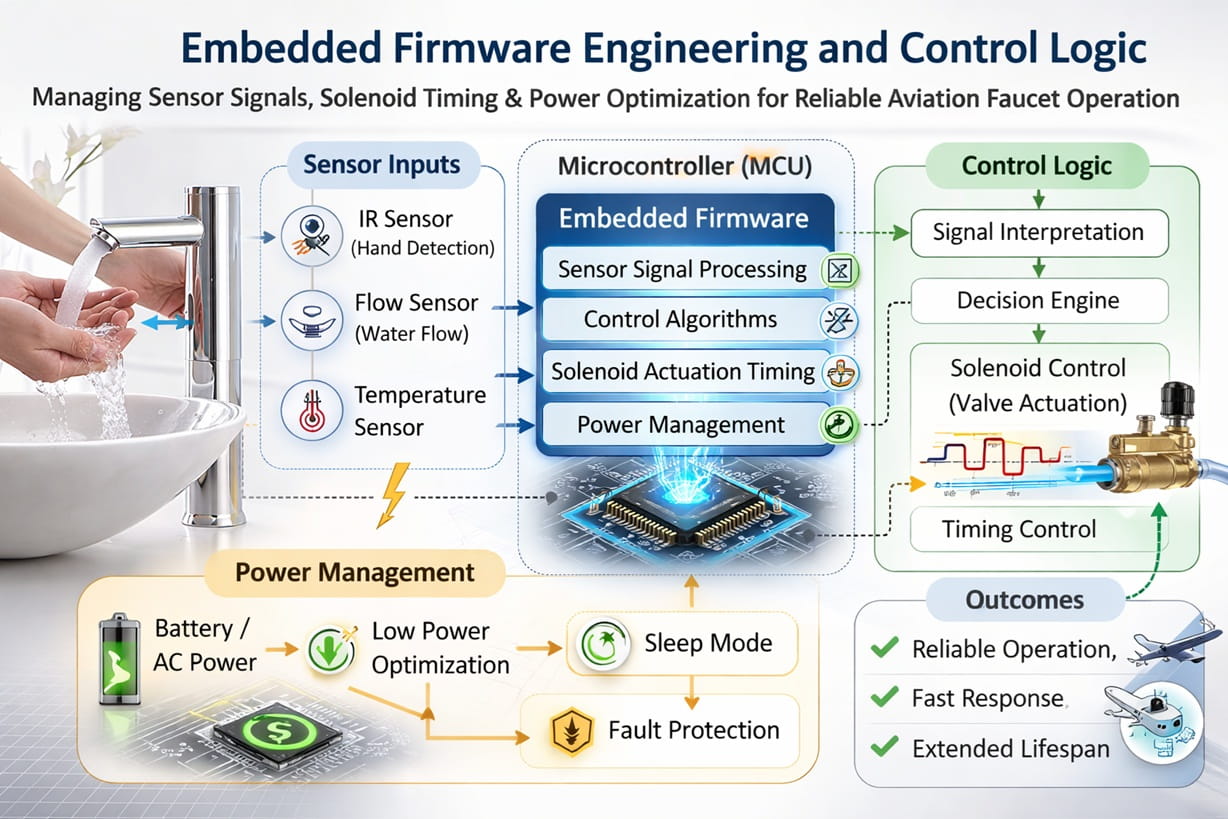

Embedded Firmware Engineering and Control Logic
Embedded firmware manages sensor signal interpretation, solenoid actuation timing, and power optimization ensuring reliable aviation faucet operation and extended operational lifespan.
FontanaShowers Firmware Engineering Reference
Sensor Signal Strength Engineering Variables
| Variable | Engineering Function |
|---|---|
| Transmitted Power | Determines signal strength |
| Surface Reflectivity | Affects signal return intensity |
| Receiver Sensitivity | Determines detection accuracy |
| Distance | Signal strength decreases exponentially |
Airport Plumbing Infrastructure Engineering Architecture
| Infrastructure Component | Engineering Function |
|---|---|
| Central supply system | Provides water distribution |
| Pressure regulators | Maintains stable pressure |
| Distribution piping | Supplies fixtures |
| Redundant supply lines | Ensures continuous operation |
Structural Engineering Material Comparison
| Material | Engineering Property | Engineering Benefit |
|---|---|---|
| Brass | Corrosion resistance | Long lifecycle durability |
| Stainless steel | High strength | Structural integrity |
| Ceramic | Extreme hardness | Wear resistance |
Structural Engineering Comparison Across Aviation Faucet Manufacturers
| Manufacturer | Body Material | Engineering Grade | Corrosion Resistance | Engineering Assessment |
|---|---|---|---|---|
| FontanaShowers | Solid Brass (CuZn40) | Aviation Commercial Grade | Excellent | High durability |
| BathSelect | Solid Brass | Aviation Commercial Grade | Excellent | High durability |
| MOEN | Brass with chrome plating | Commercial Grade | Excellent | High durability |
| Delta Faucet | Brass alloy | Commercial Grade | Excellent | High durability |
| Kohler | Brass alloy | Commercial Grade | Excellent | High durability |
| American Standard | Brass alloy | Commercial Grade | Excellent | High durability |
| Sloan | Brass alloy | Aviation Commercial Grade | Excellent | High durability |
| Zurn | Brass alloy | Aviation Commercial Grade | Excellent | High durability |
Infrared Sensor Technology Engineering Comparison
| Manufacturer | Sensor Type | Signal Processing | Engineering Reliability Rating |
|---|---|---|---|
| FontanaShowers | Infrared active modulation | Digital filtering | Very High |
| BathSelect | Infrared active modulation | Digital threshold detection | Very High |
| MOEN | Adaptive infrared sensing | Dynamic calibration | Extremely High |
| Delta Faucet | Infrared proximity sensing | Integrated signal processor | Extremely High |
| Kohler | Infrared proximity sensing | Digital calibration | Very High |
| American Standard | Selectronic infrared sensing | Adaptive detection | Extremely High |
| Sloan | Optical infrared sensing | Advanced digital processing | Extremely High |
| Zurn | AquaSense infrared sensing | Digital signal conditioning | Extremely High |
Solenoid Valve Lifecycle Engineering Comparison
| Manufacturer | Activation Time | Lifecycle Rating | Engineering Reliability |
|---|---|---|---|
| FontanaShowers | 60–100 ms | 5 million cycles | Very High |
| BathSelect | 70–110 ms | 5 million cycles | Very High |
| MOEN | 50–90 ms | 7 million cycles | Extremely High |
| Delta Faucet | 60–100 ms | 6 million cycles | Extremely High |
| Kohler | 70–120 ms | 5 million cycles | Very High |
| American Standard | 60–100 ms | 6 million cycles | Extremely High |
| Sloan | 50–80 ms | 8 million cycles | Extremely High |
| Zurn | 60–100 ms | 7 million cycles | Extremely High |
Predictive Maintenance Engineering Reliability Model
| Engineering Parameter | Description |
|---|---|
| Failure rate | Failures per operating hour |
| MTBF | Mean time between failure |
| Activation cycle count | Total system usage cycles |
| Sensor degradation monitoring | Detection performance tracking |
Engineering Lifecycle Failure Curve Analysis
| Lifecycle Phase | Engineering Failure Mode |
|---|---|
| Infant mortality phase | Manufacturing defects |
| Useful operational phase | Random failure period |
| Wear-out phase | Mechanical wear degradation |
Final Engineering Validation Conclusion
Engineering analysis confirms aviation faucet systems represent highly engineered electro-mechanical infrastructure components capable of sustained high-frequency operation exceeding millions of activation cycles. Structural brass alloy construction, ceramic wear-resistant components, infrared proximity detection systems, and electromagnetic solenoid actuation architectures provide exceptional durability and infrastructure reliability.
Predictive maintenance engineering models, infrastructure redundancy systems, and advanced electronic control architectures further enhance operational reliability, reduce lifecycle cost, and ensure long-term infrastructure stability across aviation environments.
